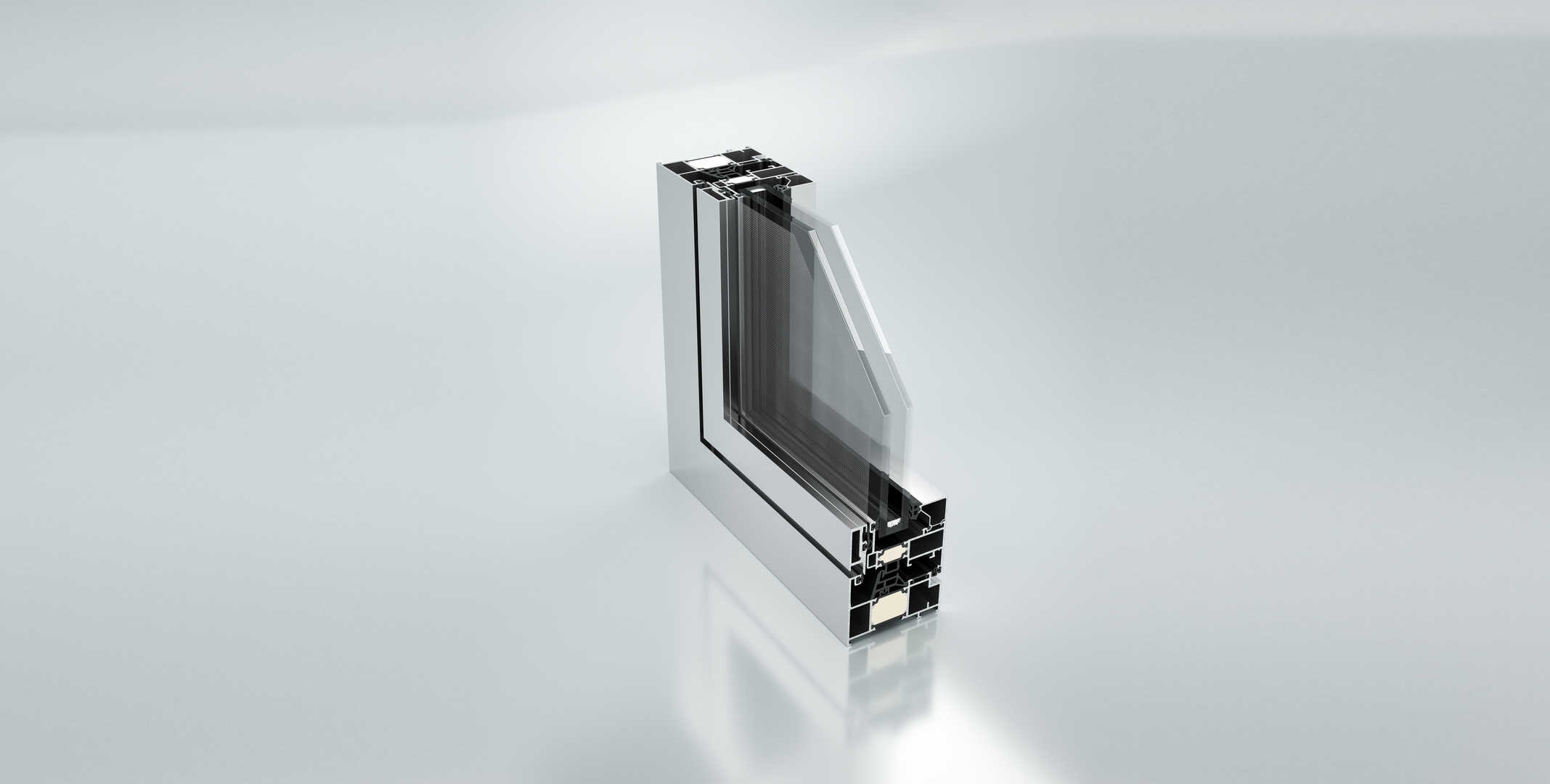

RW80PG
Inward-Opening Window with Integrated Screen
(Optional Tilt-turn Opening Type)
Key Features and Advantages
Frame-Sash Same Horizon
The frame-sash in the same horizon design delivers a clean appearance, more suitable for contemporary architecture.
Flexibile Opening Types
Openable options for inward opening and inward opening+tilt ＆ turn.
More Stable
A triple-layer sealing process with adhesive tape and an anti-shrinkage clamping design significantly enhances sealing performance, more stable and durable.
Smart Fly Screen Solutions
Structural screen and window integration engineering for tidy appearance. Quick-dismantle, easy installation and maintenance.
More Comfortable
High performance acoustic insulation, and high performance energy efficiency for more comfort
More Security
Auto protection activates for handle misused.
Thickness Of Main Profile
0.07" (1.8mm)
Glass Clamping Thickness
≤2.28" (58mm)
Load Bearing Of Sash
≤ 220.46lb (100kg)
Maximum Size Of Sash
Width ≤ 47.24" (1200mm)
Height ≤ 82.68" (2100mm)
Water Penetration
720pa (15.04 psf)
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf)
U-Factor
≥ 0.28 Btu/(h·ft²·F)
Screen
Integrated screen
Standard
PET high-transparency mesh
Screen Height
≤ 110.24" (2800mm)
Screen Width
7.87" (200mm)
