ROW120E
Casement Window with Integrated Screen
(Optional Hopper WinDow Opening Type)
Key Features and Advantages
Enhanced Safety And Anti-Falling Engineering
Bucalu’s patented anti-falling engineering ensures secure connections between the friction stay, fixed frame, and sash, effectively reducing the risk of detachment and improving safety.
Security Engineering
A clamping locking system combined with back locking points provides anti-prying performance, meeting the EU RC2 safety standards.
User-Friendly Designed Handle
The S-Plus series classic handle ensures a more intuitive user experience and superior comfort.

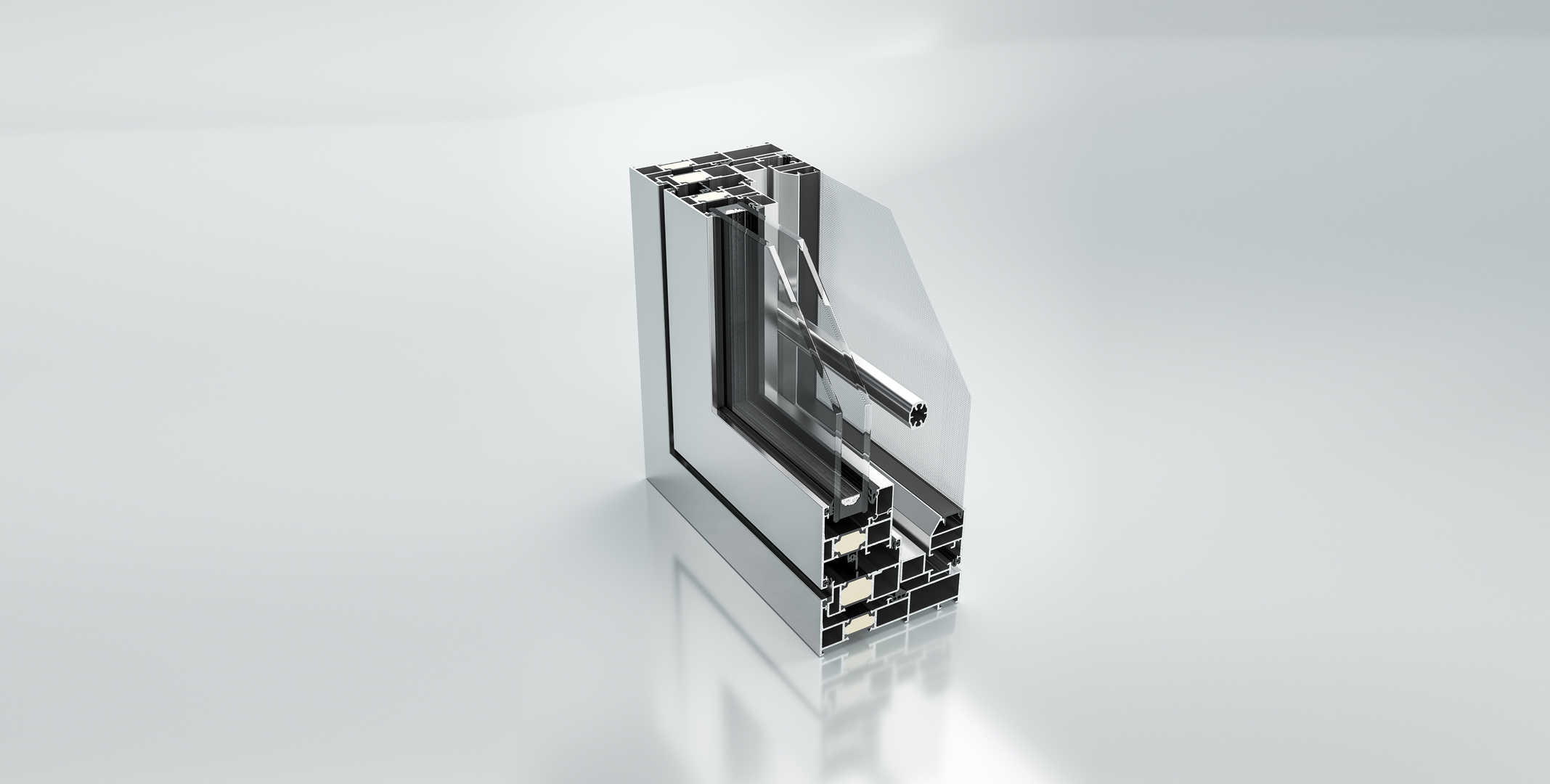

Streamlined Frame-Sash Design
The coplanar design ensures the frame and sash align seamlessly when closed, offering a clean look while making maintenance and cleaning easier.
Balance In Ventilation And Safety
Optional full or half restrictor provides the flexibility for small-angle micro-vent, enhancing airflow while minimizing the risk of falling.
More Stable
A triple-layer sealing process with adhesive tape and an anti-shrinkage clamping design significantly enhances sealing performance, more stable and durable.
Thickness Of Main Profile
0.07" (1.8mm)
Glass Clamping Thickness
Frame ≤ 2.28" (58mm)
sash ≤ 1.54" (39mm)
Load Bearing Of Sash
≤ 110.23lb (50kg)
Maximum Size Of Sash
Width ≤ 35.43" (900mm)
Height ≤ 66.93" (1700mm)
Water Penetration
720pa (15.04 psf)
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf)
U-Factor
≥ 0.25 Btu/(h·ft²·F)
Screen
Integrated screen
Standard
Diamond mesh-0.02" (0.5mm)
Additional Option
Stainless steel high-transparency mesh-0.01" (0.21mm)
Screen Height
≤ 66.93" (1700mm)
Screen width: ≤ 35.43" (900mm)
