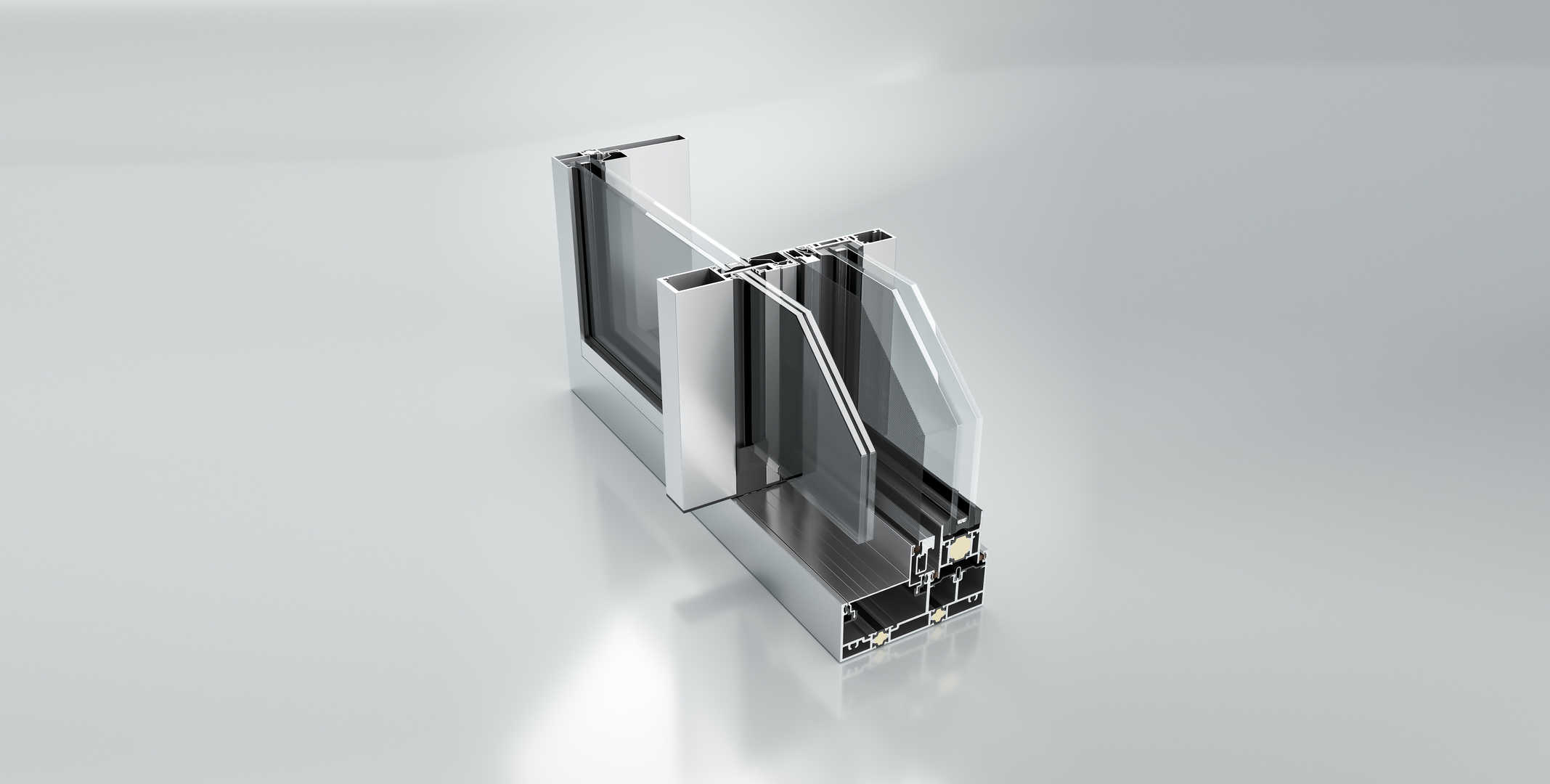

RSW140P
Panoramic Sliding Window
Key Features and Advantages
High Performance Sealing Feature
Multi interlocking sealing engineering to provide better sealing performance.
High Performance Waterproof
Staged and wind resistance and water drainage engineering.
More Security
Multi-points locking fitting and secure hardware system for anti-mishandle engineering and anti-prying performance.
Panoramic View
Frameless sash design provides maximum view and more openable sash.
Glass Clamping Thickness
Movable sash ≤ 1.26" (32mm)
Fixed sash ≤ 1.93" (49mm)
Load Bearing Of Sash
≤ 352.74lb (160kg)
Maximum Size Of Sash
Width ≤ 98.43" (2500mm)
Height ≤ 110.24" (2800mm)
Water Penetration
Standard
Lower Frame
250pa HD 100B: 720pa
Standard Lower Frame
5.22 psf HD100B:15.04 psf)
Air Leakage
≤1.5L/S/m² (0.3cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf)
U-Factor
≥ 0.41 Btu/(h·ft²·F）
Screen
Ntegrated Screen
Standard
PET High-transparency Mesh
Screen Height
≤ 110.24" (2800mm)
Screen Width
70.87" (1800mm)
Optional Frame
Thickness Of Main Profile
0.09" (2.2mm)
