ROW100P

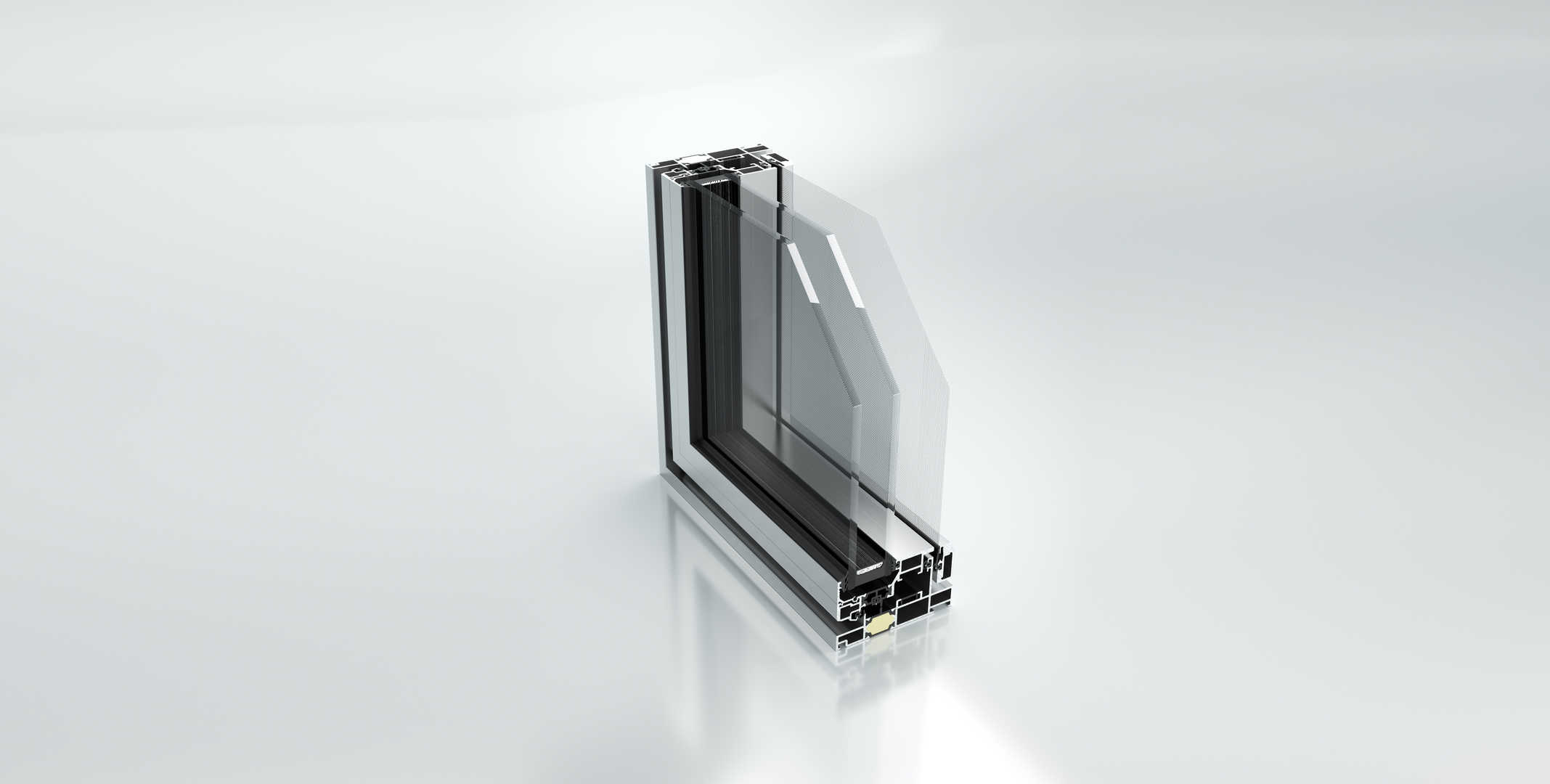

Slim Frame Casement Window with Integrated Screen
Key Features and Advantages
Maximum View And Slim Frame
The slim frame design, combined with flush frame-sash alignment, delivers sleek lines and an ultimate view.
Balance In Ventilation And Safety
Optional full or half restrictor provides the flexibility for small-angle micro-vent, enhancing airflow while minimizing the risk of falling.
Fly Screen System
The integrated design of the screen, glass, and guardrail ensures insect prevention, enhanced safety. The inward-opening screen simplifies cleaning and maintenance. High transparency stainless steel or PET nylon fly screen.
Enhanced Safety And Anti-falling Engineering
Bucalu’s patented anti-falling engineering ensures secure connections between the friction stay, fixed frame, and sash, effectively reducing the risk of detachment and improving safety.
Security Engineering
A clamping locking system combined with back locking points provides anti-prying performance, meeting the EU RC2 safety standards.
User-Friendly Designed Handle
The S-Plus series classic handle ensures a more intuitive user experience and superior comfort.
Thickness Of Main Profile
0.07" (1.8mm）
Glass Clamping Thickness
≤ 1.38" (35mm）
Load Bearing Of Sash
≤ 176.37lb (80kg)
Maximum Size Of Sash
Width ≤ 27.56" (700mm）height ≤ 66.93" (1700mm）
Water Penetration
720pa (15.04 psf）
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf）
U-Factor
≥ 0.25 Btu/(h·ft²·F)
Screen
Integrated screen
Standard
Stainless steel high-transparency mesh-0.01" (0.21mm)
Additional Option
PET high-transparency mesh
Screen Height
≤66.93" (1700mm)
Screen Width
≤27.56" ( 700mm)
