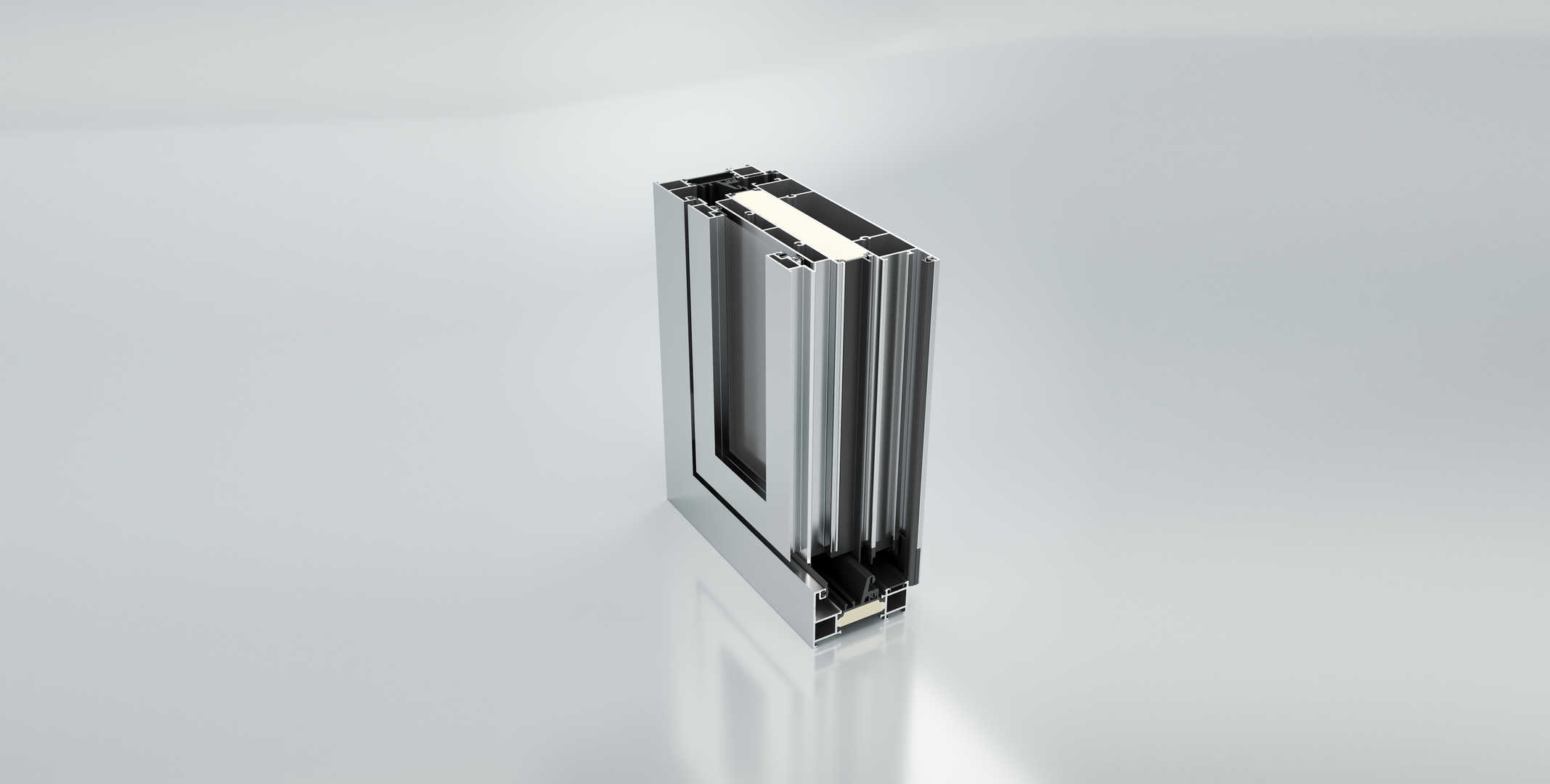

RW80V
Vent Window with Integrated Screen
(Optional Electric Opening Type)
Key Features and Advantages
Streamlined Frame-Sash Design
The coplanar design ensures the frame and sash align seamlessly when closed, offering a clean look while making maintenance and cleaning easier.
Screen Window Integration Solutions
Structural engineering for clean and tidy appearance. Quick-detach hinge engineering for easy installation and maintenance.
Upgrading Anti-Theft Performance
Hidden chain and clamping locking system for more security
Unique Vent Structure Engineering
Micro-vent design ensures security and effective airflow.
Smart Vent Systems
Smart vent engineering provides indoor and outdoor air exchange.
More Stable
A triple-layer sealing process with adhesive tape and an anti-shrinkage clamping design significantly enhances sealing performance, more stable and durable.
Thickness Of Main Profile
0.07" (1.8mm)
Glass Clamping Thickness
≤ 2.28" (58mm)
Load Bearing Of Sash
≤ 176.37lb (80kg)
Maximum Size Of Sash
Width 7.87" (200mm)
height ≤ 110.24" (2800mm)
Water Penetration
250pa (5.22 psf)
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf)
U-Factor
≥ 0.28 Btu/(h·ft²·F)
Screen
Integrated screen
Standard
PET high-transparency mesh
Screen Height
≤ 110.24" (2800mm)
Screen Width
7.87" (200mm)
Optional Frame
Standard Frame
1.10" (28mm)
Large Frame
1.50" (38mm)
