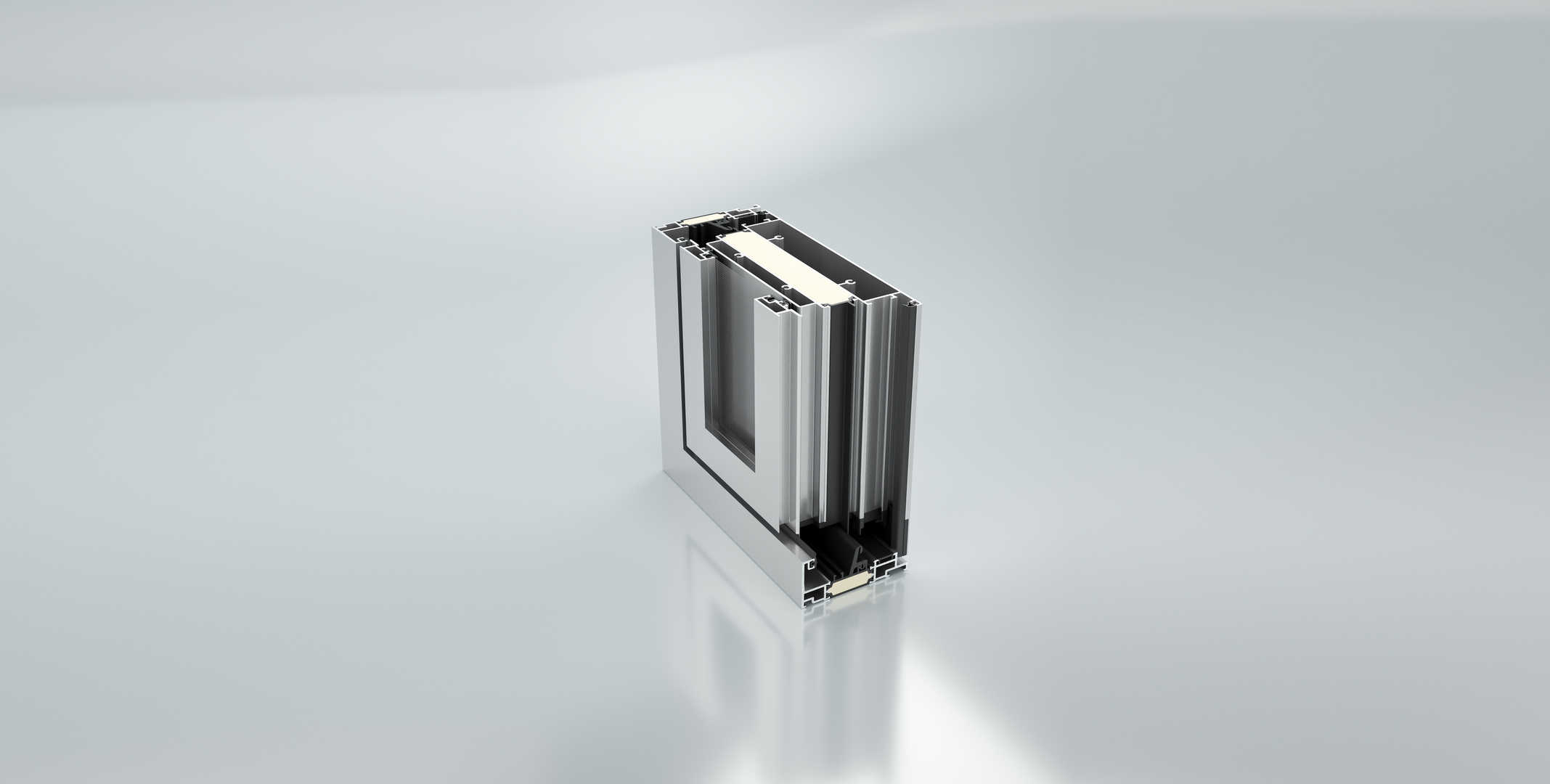

RW90PV
Slim Frame Vent Window with Integrated Screen
(Optional Electric Opening Type)
Key Features and Advantages
More Slim
The more slim frame design delivers sleek lines and an ultimate view.
Versatile And Flexible Opening Types
Supports inward opening and tilt-and-turn available.
More Security
Auto protection activates for handle misused. Hidden chain and clamping locking system for more security.
Micro-Vent Options
Micro-vent design ensures security and effective airflow.
Frame-Sash Same Horizon
The frame-sash in the same horizon design delivers a clean appearance, more suitable for contemporary architecture.
Thickness Of Main Profile
0.07" (1.8mm)
Glass Clamping Thickness
≤ 1.93" (49mm)
Load Bearing Of Sash
≤ 176.37lb (80kg)
Maximum Size Of Sash
Width 7.87" (200mm)
Height≤ 110.24" (280
Water Penetration
250pa (5.22 psf) 0mm)
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf)
U-factor
≥ 0.28 Btu/(h·ft²·F)
Screen
Integrated Screen
Standard
PET High-transparency Mesh
Screen Height
≤110.24" (2800mm)
Screen Width
7.87" (200mm)
Optional Frame
Standard Frame
0.75" (19mm)
Large Frame
1.50" (38mm)
