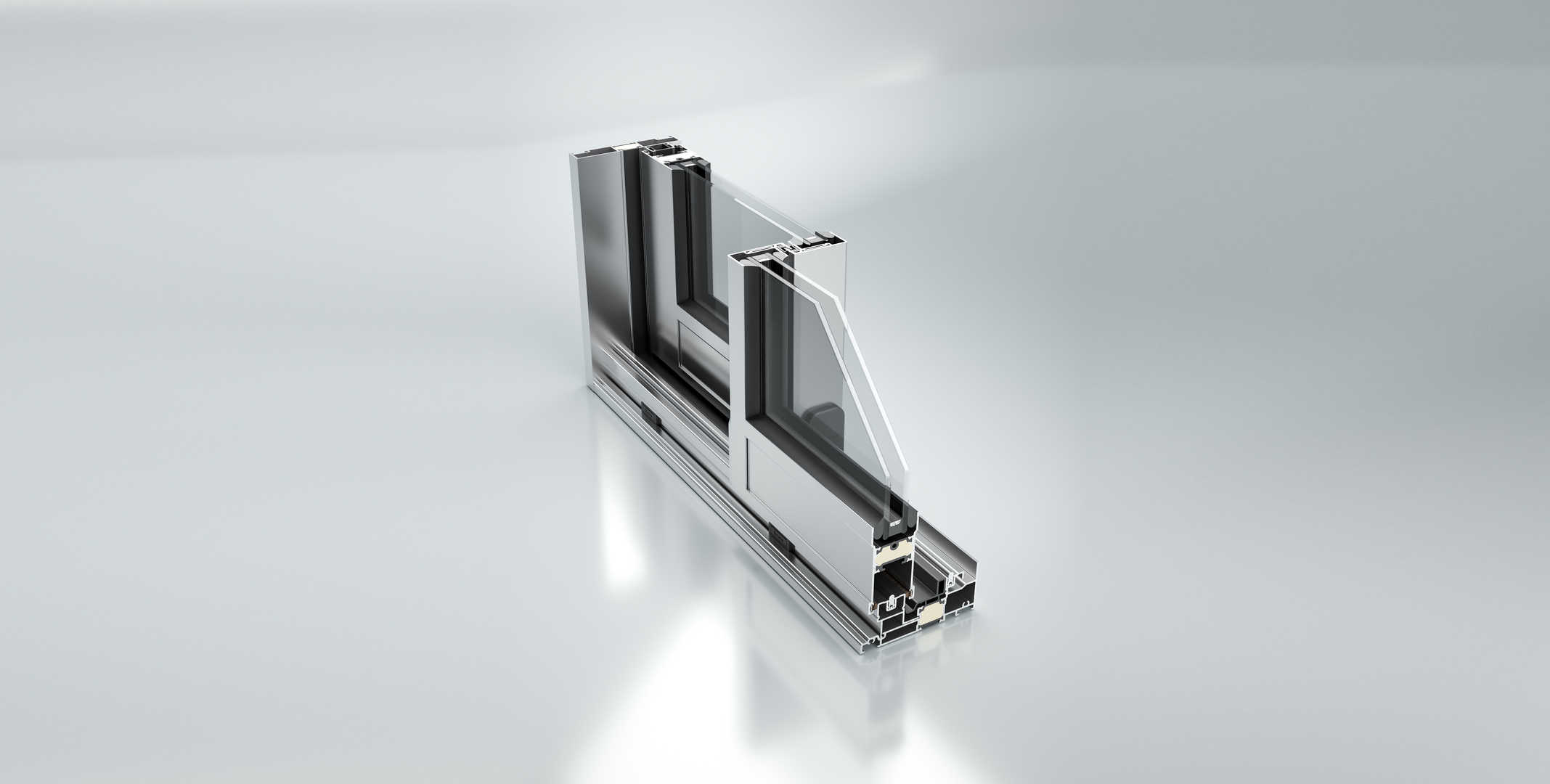

RSW113P
Slim Frame Sliding Window
Key Features and Advantages
High Performance Sealing Feature
Multi interlocking sealing engineering to provide better sealing performance.
High Performance Waterproof
Staged and wind resistance and water drainage engineering.
More Security
Multi-points locking fitting and secure hardware system for anti-mishandle engineering and anti-prying performance.
Thickness Of Main Profile
0.07" (1.8mm)
Glass Clamping Thickness
≤ 1.26" (32mm)
Load Bearing Of Sash
≤ 352.74lb (160kg)
Maximum Size Of Sash
Width ≤ 78.74" (2000mm)
Height ≤ 78.74" (2000mm)
Water Penetration
50pa (5.22 psf)
Air Leakage
≤1.5L/S/m² (0.3cfm/ft²)
Structural Test Pressure
＜ 5600pa (116.96 psf)
U-Factor
≥ 0.37 Btu/(h·ft²·F）
Screen
External Mounted Screen
Standard
PET High-transparency Mesh
Screen Height
≤78.74" (2000mm)
Screen Width
≤70.87" (1800mm)
