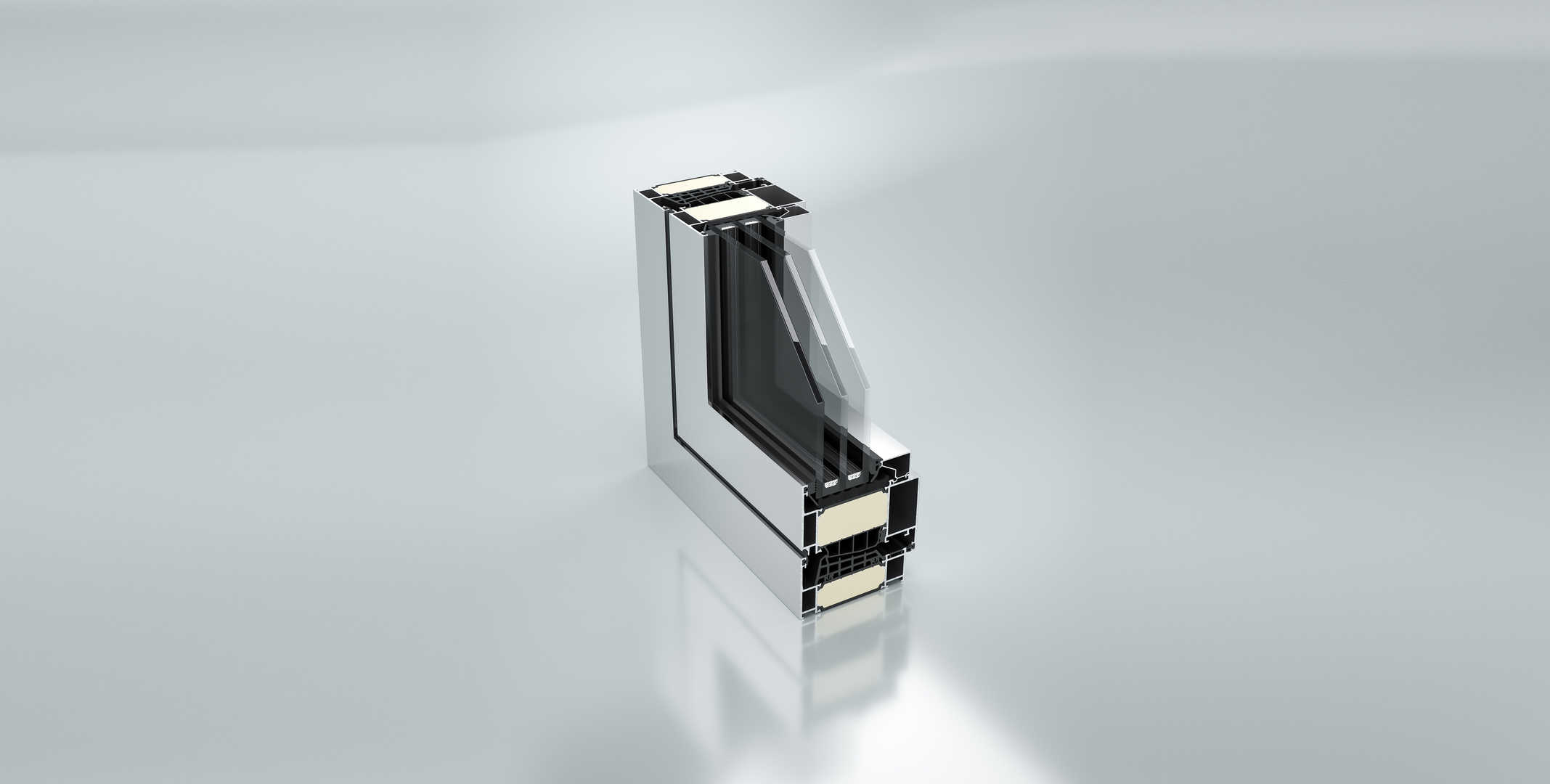

RW100
Inward-Opening Window
(Optional Tilt-turn Opening Type)
Key Features and Advantages
Heavy Duty Hardware Engineering
The operable sash weight up to 220 lbs (100 kg).
Frame-Sash Same Horizon
The frame-sash in the same horizon design delivers a clean appearance, more suitable for contemporary architecture.
PHI Certified Passive Window
The thermal insulation coefficient meets the standards for passive house windows.
Thickness Of Main Profile
0.07" (1.8mm)
Glass Clamping Thickness
≤ 3.03" (77mm)
Load Bearing Of Sash
≤ 220.46lb (100kg)
Maximum Size Of Sash
Width ≤ 47.24" (1200mm)
Height ≤ 82.68" (2100mm)
Water Penetration
720pa (15.04 psf)
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf)
U-Factor
≥ 0.18 Btu/(h·ft²·F)
Screen
Xternal Mounted Screen
Standard
Stainless Steel High-transparency Mesh-0.01" (0.21mm)
Additional Option
PET High-transparency Mesh
Screen Height
≤ 82.68" (2100mm)
Screen Width
≤ 47.24" (1200mm)
