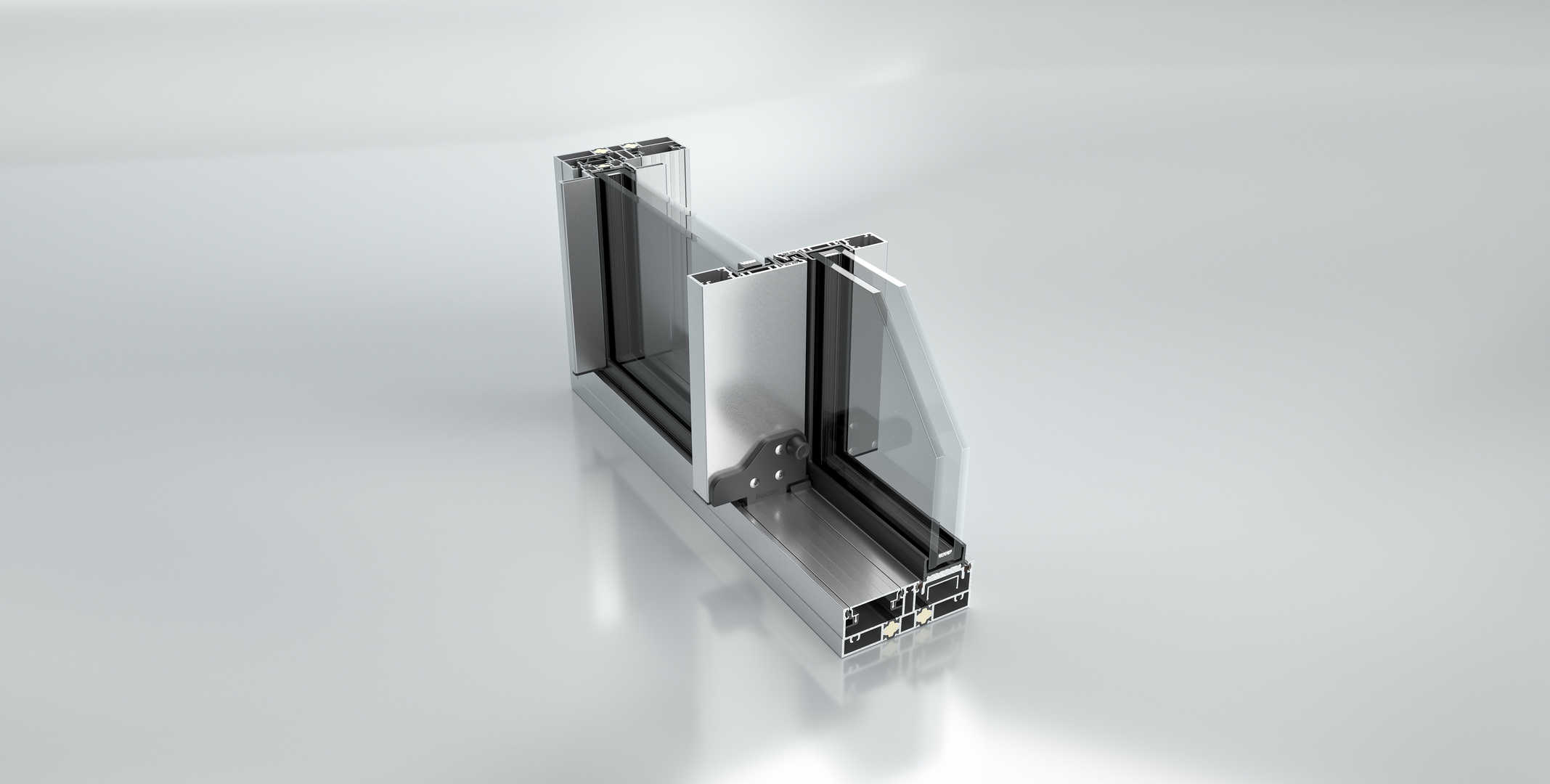

RSD125P
Panoramic Sliding Door
(Optional Electric Opening Type)
Key Features and Advantages
Panoramic View
Frameless sash design provides maximum view and more openable sash.
Heavy Duty Hardware Engineering
The operable sash weight up to 1,984 lbs (900 kg).
High Performance Waterproof
Hidden and systematic water drainage design for both high performance and decent appearance.
Durable Components
Stainless steel dual tracks and specialized roller kits for stable and long-lasting performance.
More Options
Track options for roller on frame or roller on sash; openable control for manual or electric.
Thickness Of Main Profile
0.09" (2.2mm)
Load Bearing Of Sash
≤ 1984.16lb (900kg)
Maximum Size Of Sash
Width ≤ 157.48" (4000mm)
Height ≤ 137.80
Glass Clamping Thickness
≤ 1.26" (32mm) " (3500mm）
Water Penetration
Normal lower frame: 250 pa HD100A: 720 pa (Lower frame A: 5.22 psf HD100B: 15.04 psf）
Air Leakage
≤1.5L/S/m² (0.3cfm/ft²）
Structural Test Pressure
＜ 7200pa (150.38 psf）
U-Factor
≥ 0.39 Btu/(h·ft²·F)
Optional Frame
Sash A
Sash B (non-electric)
Sash B (electric)
