RFD70
Bi-Fold Door
Key Features and Advantages
Durability And Long-Lasting Performance
50,000 repeat times without damage.
Flexible Opening Options
Supports outward and inward folding-sliding configurations with various combinations.
Safety Anti-Pinch Design
Anti-pinch design at frame-sash joints reduce the risk of hand injuries.
Technical Data
Thickness Of Main Profile
: 0.08" (2.0mm)
Maximum Size Of Sash
width ≤ 47.24" (1200mm) height ≤ 118.11" (3000mm)
Load Bearing Of The Sash
≤ 198.42lb (90kg)
Glass Clamping Thickness
≤ 1.89" (48mm)
Water Penetration
Standard lower frame: 250pa HD100A: 720 pa (Lower frame A: 5.22 psf HD100B: 15.04 psf)
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 4900 pa (102.34 psf)
U-Factor
≥ 0.28 Btu/(h·ft²·F）

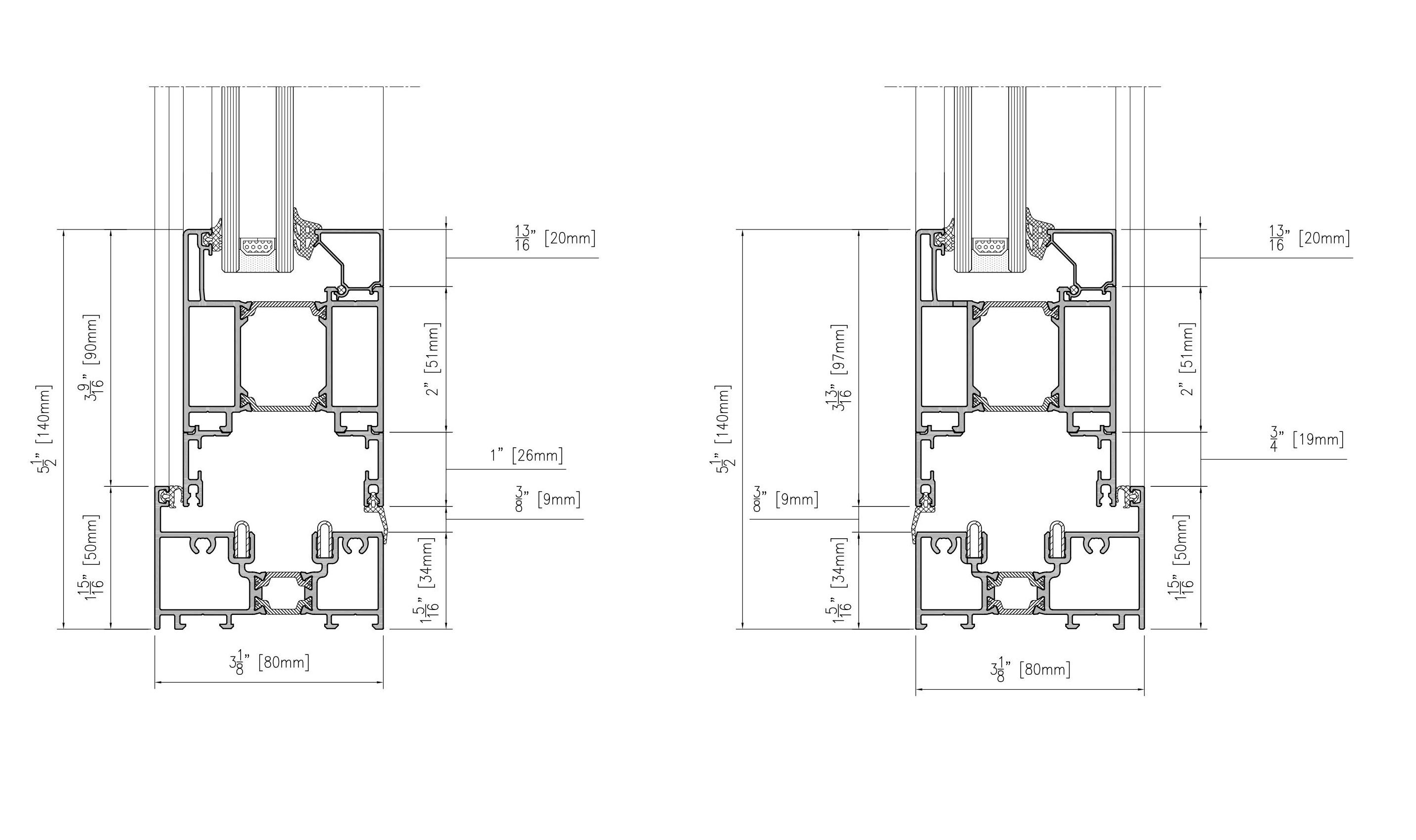

Optional Frame
Outward bi-fold
Inward bi-fold
