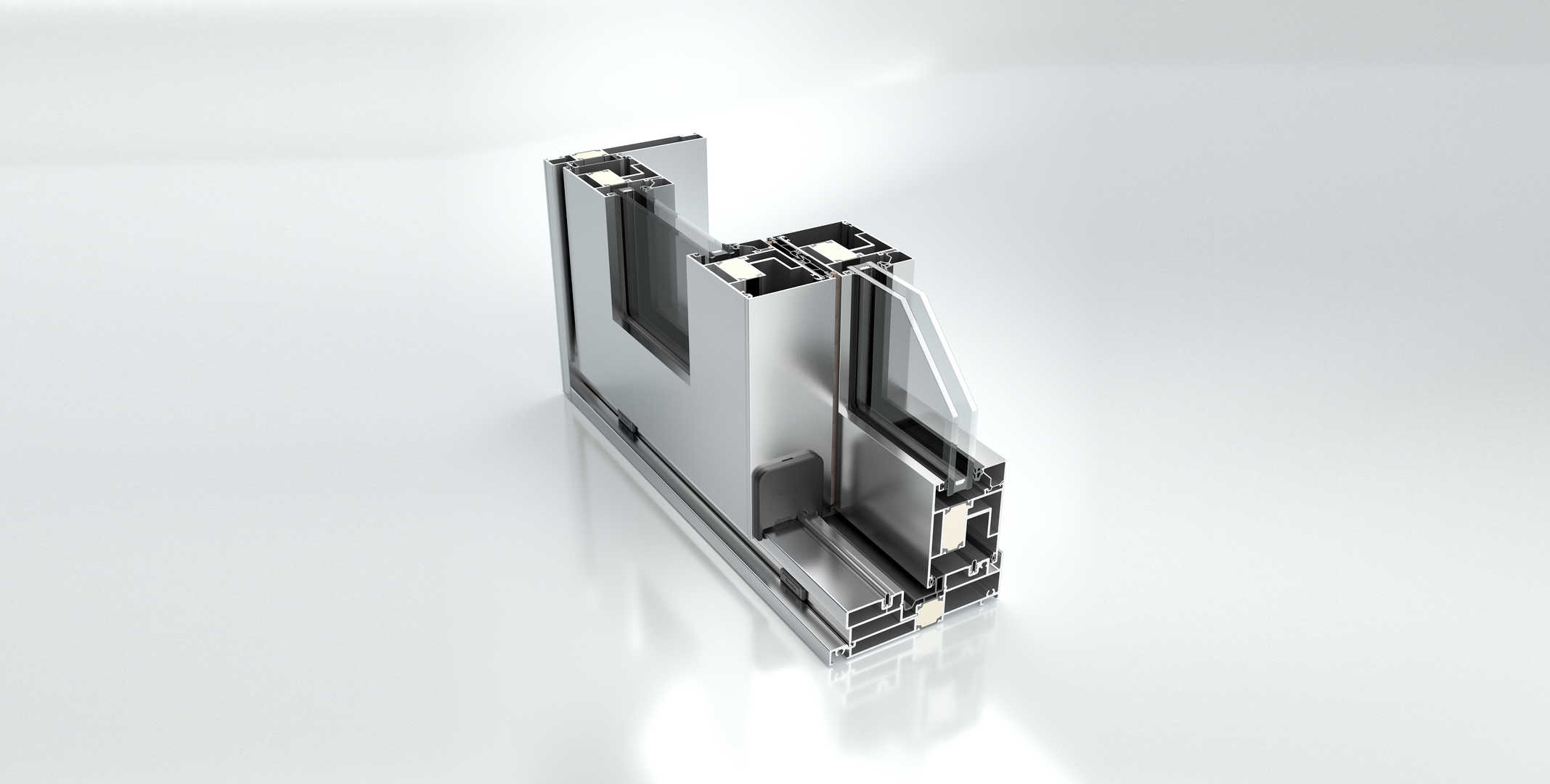

RSD165L
Lift-Slide Door
Key Features and Advantages
Wide Opening View
Single sliding sashes can reach up to 9.8 feet (3.0 meters) in width, providing rich vent and panoramic views.
More Security
Hidden multi-point locking fitting and secure hardware system for anti-mishandle engineering and anti-prying performance.
More Comfortable
High performance acoustic insulation for more comfort.
Unique Self-Developed Sealing
Self-developed sealing device improves sealing performance.
High Performance Waterproof
Hidden and larger opening drainage design.
Thickness Of Main Profile
0.09" (2.2mm)
Load Bearing Of Sash
≤ 881.85lb (400kg)
Maximum Size Of Sash
width ≤ 118.11" (3000mm)
height ≤ 118.11
Glass Clamping Thickness
≤ 1.89" (48mm) " (3000mm)
Water Penetration
Lower frame A: 250 pa HD100B: 720 pa (Lower frame A: 5.22 psf HD100B: 15.04 psf)
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf)
U-Factor
≥ 0.28 Btu/(h·ft²·F)
Optional Frame
Ordinary Beading
3.98" (101mm)
Narrow Beading
1.65" (42mm)
