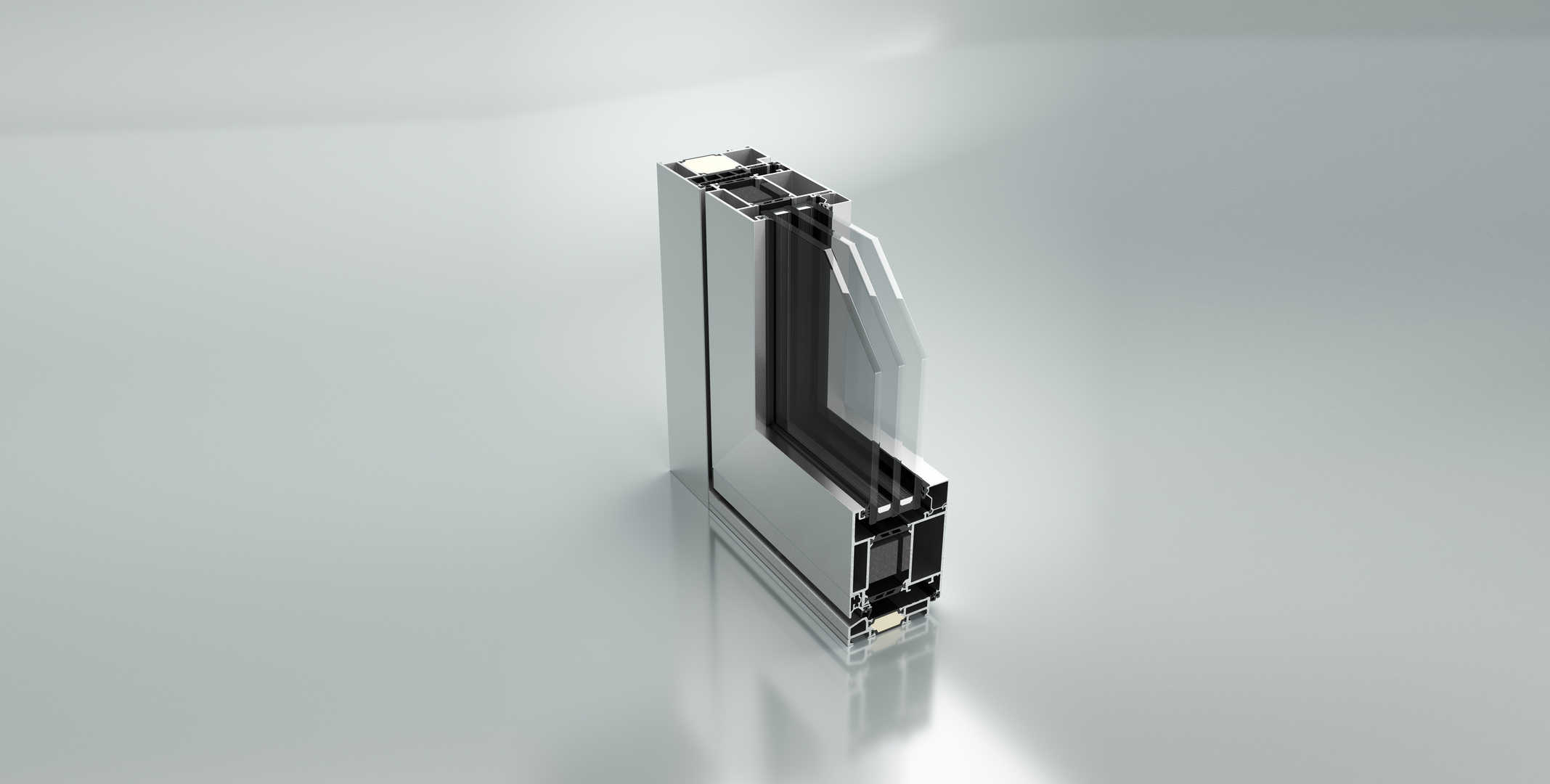

RD80
Side Hinged Door
Key Features and Advantages
Durability And Long-Lasting Performance
200,000 repeat times without damage.
More Security
Mushroom-Head Locking points, multi-point locking fitting and secure hardware system for anti-mishandle engineering and anti-prying performance.
More Comfortable
High performance acoustic insulation, and high performance energy efficiency for more comfort.
Thickness Of Main Profile
0.09" (2.2mm)
Maximum Size Of Sash
Width ≤ 39.37" (1000mm) Height ≤ 98.43" (2500mm)
Load Bearing Of sash
≤ 264.55lb (120kg)
Glass Clamping Thickness
sash: ≤ 2.28" (sash: ≤ 58mm) frame: ≤ 2.09" (frame: ≤ 53mm)
Water Penetration
Lower Frame A: 100 pa HD100A: 720 pa (Lower frame A: 2.09 psf HD100A: 15.04 psf)
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf)
U-Factor
≥ 0.25 Btu/(h·ft²·F）
Optional Frame
Outward Opening Low Threshold
0.78" (19.7mm)
Outward Opening High Threshold
1.42" (36mm)
Inward Opening Low Threshold
0.63" (16mm)
Inward Opening High Threshold
0.63" (16mm)
