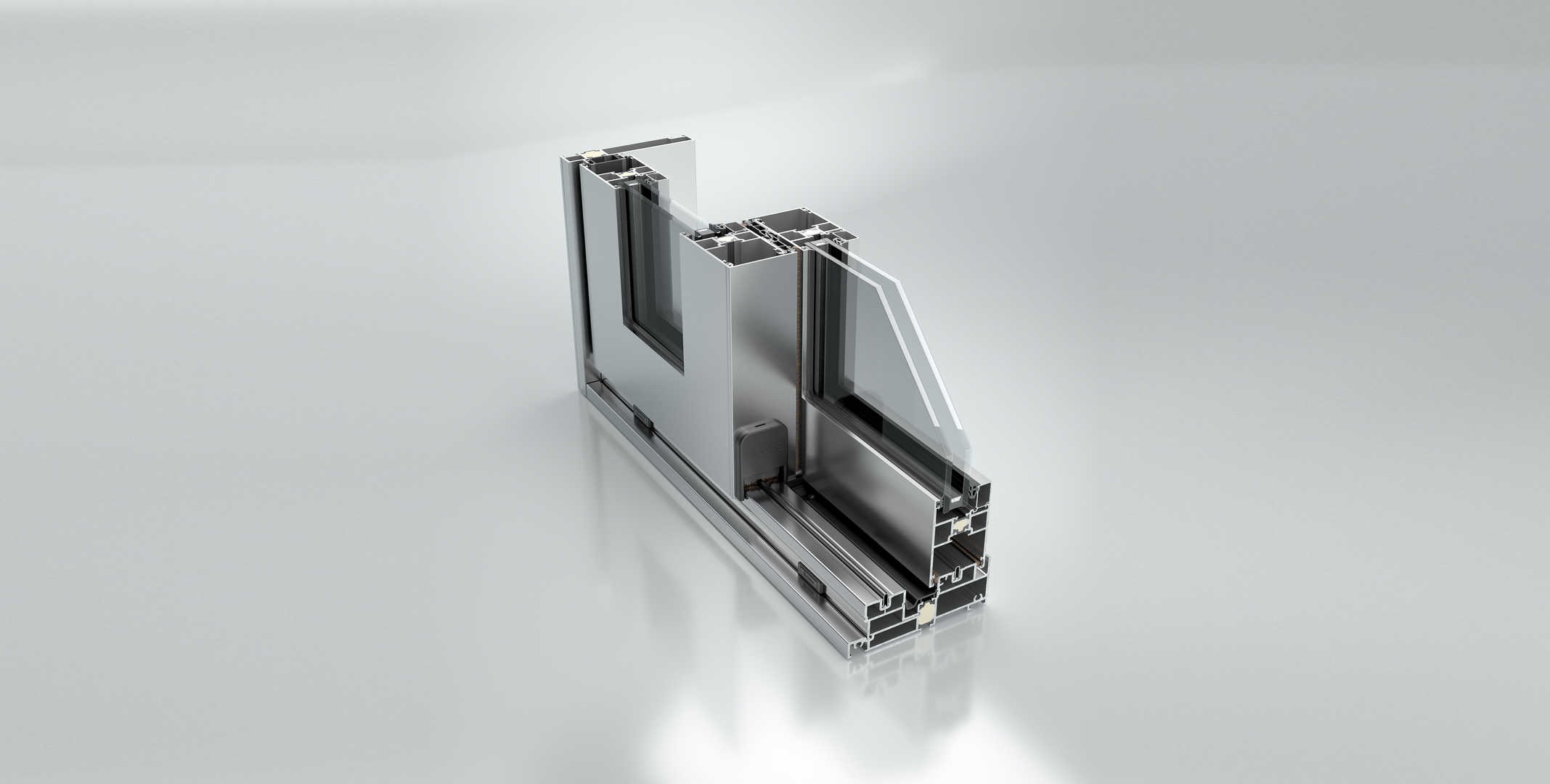

RSD135
Sliding Door
(Optional Electric Opening Type)
Key Features and Advantages
More Security
Hidden multi-point locking fitting and secure hardware system for anti-mishandle engineering and anti-prying performance.
More Comfortable
High performance acoustic insulation for more comfort.
Unique Self-Developed Sealing
Self-developed sealing device improves sealing performance.
High Performance Waterproof
Hidden and systematic water drainage design for both high performance and decent appearance.
Durability
Equippend with stainless steel track and unique roller for smooth and quiet using
More Openable Options
Manual control, electric control fingerprint control and PIN control available.
Thickness Of Main Profile
0.09" (2.2mm)
Load Bearing Of Sash
≤ 661.39lb (300kg)
Maximum Size Of Sash
width ≤ 118.11" (3000mm)
height ≤ 118.11
Glass Slamping Thickness
≤ 1.50" (38mm) " (3000mm)
Water Penetration
Lower frame A: 250pa HD100B: 720pa (Lower frame A: 5.22 psf HD100B: 15.04 psf)
Air Leakage
≤1.5L/S/m² (0.3cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38psf)
U-Factor
≥ 0.32 Btu/(h·ft²·F）
Optional Frame
Ordinary Beading
3.39" (86mm)
Narrow Beading
1.65" (42mm)
