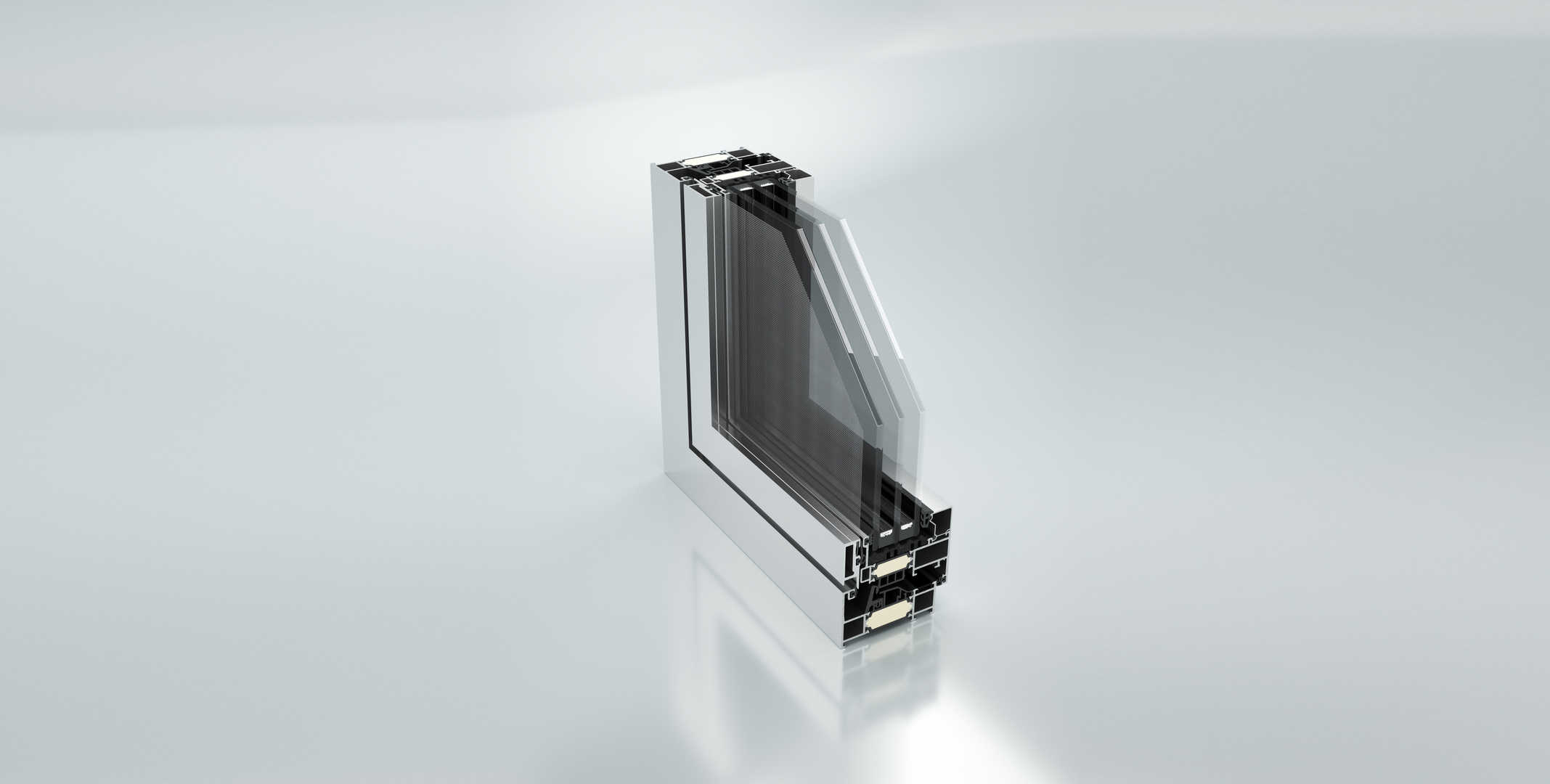

RW80G
Inward-Opening with Integrated Screen
(Optional Electric Opening Type)
Key Features and Advantages

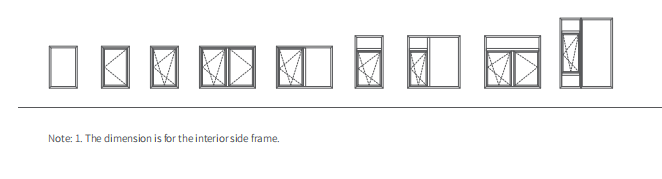

Versatile And Various Opening Types
Supports inward opening and tilt-and-turn available.
More Security
Auto protection activates for handle misused.
Frame-Sash Same Horizon
The frame-sash in the same horizon design delivers a clean appearance, more suitable for contemporary architecture.
More Stable
A triple-layer sealing process with adhesive tape and an anti-shrinkage clamping design significantly enhances sealing performance, more stable and durable.

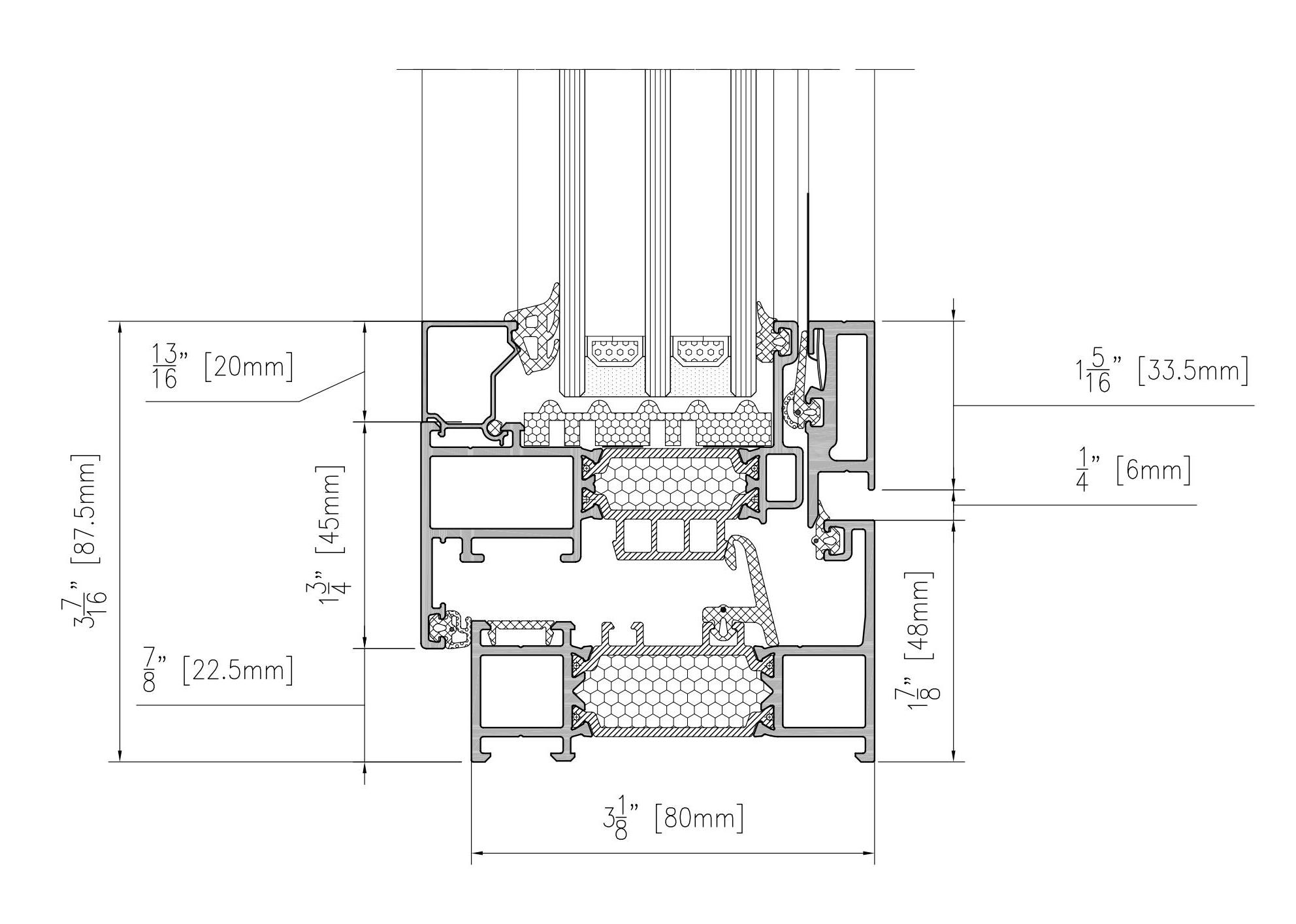

Thickness Of Main Profile
0.07" (1.8mm)
Glass Clamping Thickness
≤ 1.22" (31mm)
Load Bearing Of Sash
≤ 220.46lb (100kg)
Maximum Size Of Sash
Width ≤ 47.24" (1200mm)
Height ≤ 82.68" (2100mm)
Water Penetration
720pa (15.04 psf)
Air Leakage
≤1L/S/m² (0.2cfm/ft²)
Structural Test Pressure
＜ 7200pa (150.38 psf)
U-Factor
≥ 0.21 Btu/(h·ft²·F)
Screen
Integrated screen
Standard
PET high-transparency mesh
Screen Height
≤ 82.68" (2100mm)
Screen Width
≤ 47.24" (1200mm)
Optional Frame
Standard Frame Flush Sash
1.10" (28mm)
Large Frame Flush Sash
1.50" (38mm)
Standard Frame Stepped Sash
1.10" (28mm)
Large Frame Stepped Sash
1.50" (38mm)
